Brackets for Strut profiles KlimaProof®

rackets for Strut profiles with KlimaProof® coating

Product overview

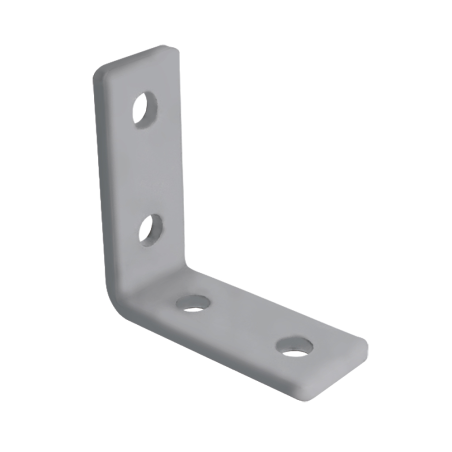

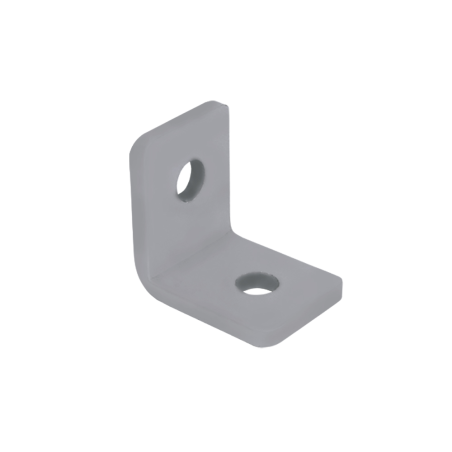

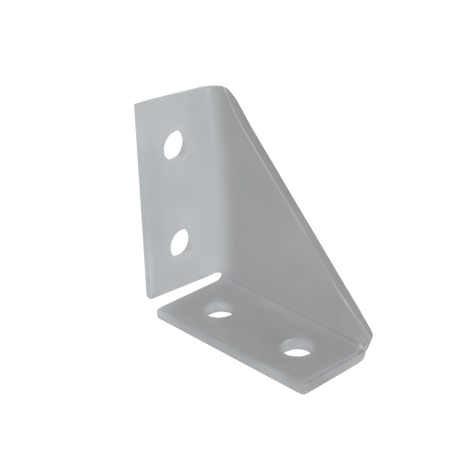

CELO’s Strut KlimaProof® brackets are designed to securely and durably connect Strut profiles 41x41 and 41x21 in modular structures and technical support systems. Available in 2- or 4-hole versions, they offer flexible installation options tailored to project needs.

Manufactured from high-strength S235 steel with a 5 mm thickness, these brackets deliver excellent load capacities: up to 4.74 kN in tension and 1.42 kN in shear, with a safety factor of 2. Their KlimaProof® coating has been tested to withstand over 1000 hours in salt spray chambers, making them ideal for outdoor installations and corrosive environments.

Compatible with all CELO Strut systems, including KlimaProof® Strut profiles, these brackets enable the construction of durable modular solutions for HVAC, electrical, and industrial support applications.

Download documents

List of references

Reference

9L23412ESC

9L23414ESC

9L23414ESCR

9L2341245ESC

Nr of holes

Angle

90º

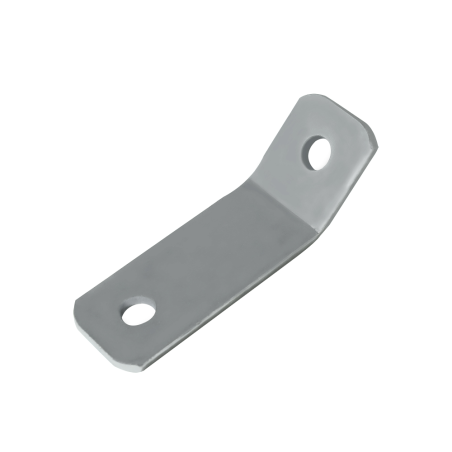

135º

Dimensions [LxWxH]

45x40x5

94x40x5

87x40x5

90x40x6

Packaging units

Packaging type.

Carton

Applications

Profile strut
Air conditioning pipes
Drainage pipes
Industrial HVAC
Machinery pipe supports
