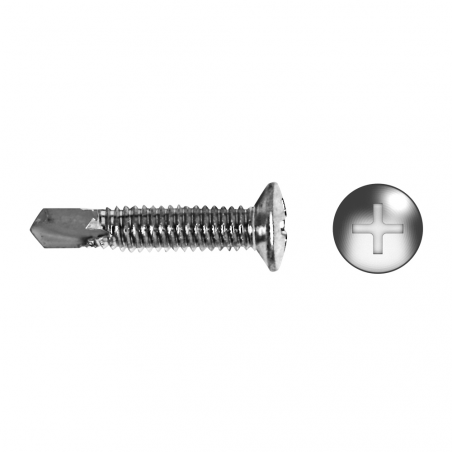

Self-drilling reduced drill bit ALUH

Self-drilling screw reduced drill bit with raised countersunk head
Self-drilling reduced drill bit ALUH
Product overview
The self-drilling screw ALUH with reduced drill bit and raised countersunk 120º angle head is designed for drilling thin steel sheets or aluminium sheets less than 2 mm thick thanks to the special thread. Avoid stripping in the aluminium profile due to the reduced drill point. Made of high-quality steel and blue zinc plated coating.
Download documents
List of references
Filters
Screw length [mm]
16
19
13
Close
Reference
94216ALUH
94219ALUH
94213ALUH
Diameter [mm]
4.2
4.2
4.2
Length [mm]
16
19
13
Screw diameter [mm]
4.2
4.2
4.2
Screw length [mm]
16
19
13
Screw material
Steel
Steel
Steel
Diameter between edges [mm]
7.5
7.5
7.5
Head type
Raised countersunk head
Raised countersunk head
Raised countersunk head
Packaging units
500
500
500
Packaging type.
Box
Box
Box
Applications
  • Aluminium doors
  • Aluminium windows
  • Fittings in aluminium profiles
  • Thin metal sheets
  • Aluminium fittings
Further specifications

Key features:

  • Reduced drill bit prevents stripping
Base materials
Suitable materials
Aluminium sheet
Aluminium sheet
Steel sheet
Steel sheet
