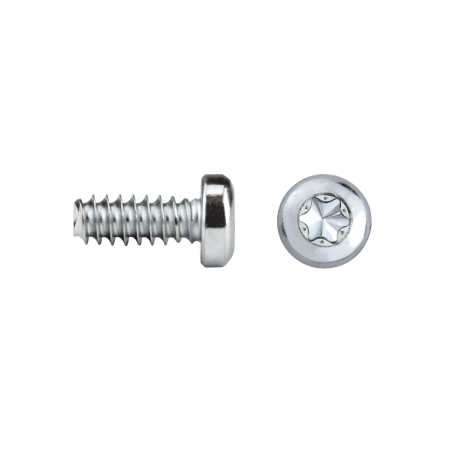

REMFORM®F screw pan head FF81T TORX®

REMFORM®F screws for hard plastics and thermoset.
REMFORM®F screw pan head FF81T TORX®
Product overview
REMFORM®'F’ screw is the best solution for the assembly of very hard materials such as glass fiber-reinforced plastics, thermoset plastics, phenolic resin ...To the REMFORM® features, REMFORM®'F’ has a smaller pitch. For the assembly of very hard plastic and thermoset.
Download documents
List of references
Filters
Screw diameter [mm]
3.5
3
4
5
Close
Screw length [mm]
10
20
8
12
Close
Head diameter [mm]
6.9
5.6
9.5
Close
Head height [mm]
2.6
3.55
Close
Reference
3510FF81T
310FF81T
320FF81T
38FF81T
410FF81T
412FF81T
520FF81T
Diameter [mm]
3.5
3
3
3
4
4
5
Length [mm]
10
10
20
8
10
12
20
Screw diameter [mm]
3.5
3
3
3
4
4
5
Screw length [mm]
10
10
20
8
10
12
20
Screw material
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Head diameter [mm]
6.9
5.6
5.6
5.6
-
-
9.5
Head height [mm]
2.6
-
-
-
-
-
3.55
Packaging units
2500
5000
2500
5000
2500
2500
1000
Packaging type.
Bag
Bag
Bag
Bag
Bag
Bag
Bag
Applications
  • Plastic assemblies
  • Electronics
  • Automotive components
  • Electric switches
  • Electrical appliances
  • Household appliances
Further specifications

Key features:

  • Smaller thread pitch increases contact along shank of the screw, improving pull-out resistance in thermoset materials
Base materials
Suitable materials
Plastic
Plastic
PVC profile
PVC profile
