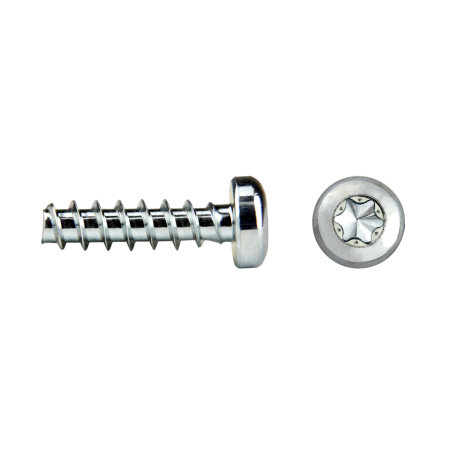

CELOPLAST screw thread CL81T for plastics pan head TORX®

CELOPLAST screw for plastics
CELOPLAST screw thread CL81T for plastics pan head TORX®
Product overview
CELOPLAST screws provide higher pull-out resistance, improve ergonomics and avoid deformation of plastic bosses, greatly enhancing the technical properties of self-tapping screws. These advantages are obtained thanks to a combination of technical features specifically designed for fixing plastic. CELOPLAST screw is recommended for assemblies in thermoplastics materials with a bending modulus between 500 and 30.000 kg/cm2
Download documents
List of references
Filters
Screw diameter [mm]
3.1
4.1
Close
Screw length [mm]
10
12
Close
Nut thickness [mm]
2.2
2.8
Close
Reference
3110CL81T
4110CL81T
4112CL81T
Diameter [mm]
3.1
4.1
4.1
Length [mm]
10
10
12
Screw diameter [mm]
3.1
4.1
4.1
Screw length [mm]
10
10
12
Head diameter [mm]
5.6
-
-
Nut thickness [mm]
2.2
2.8
2.8
Thread
Thread for plastics
Thread for plastics
Thread for plastics
Packaging units
5000
2500
2500
Packaging type.
Bag
Bag
Bag
Applications
  • Automotive components
  • Toys
  • Electronics
  • Electric switches
  • Electrical appliances
  • Household appliances
  • Light switches
  • Lighting
  • Engines
Further specifications

Key features:

  • Lower threading torque improves assembly ergonomics
  • Great vibration and stripping resistance with higher breaking torque for higher assembly torque
  • Excellent pull-out and vibration resistance
Base materials
Suitable materials
Plastic
Plastic
PVC profile
PVC profile
