Double push clip FTD

Plastic clip with plug direct fixing to concrete
Plastic clamp multidiameter - double clamp clip
Product overview

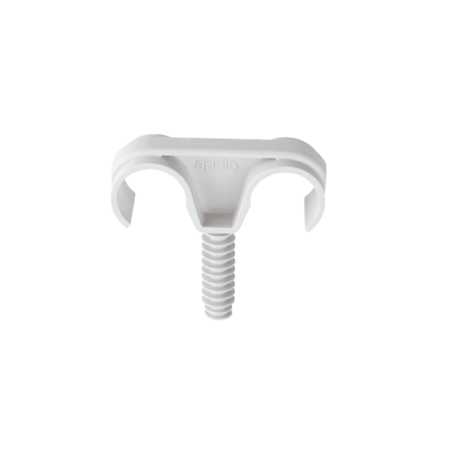

The halogen-free TACLIP® FTD plug clip enables quick installation with good grip for cables and conduits. This is because the self-centring push clip fixes two parallel pipes simultaneously with only one fixing point.

Show more
Download documents
View videos
List of references
Filters
Clamping range [mm]
16
29
Close
Height [mm]
20
24
29
Close
Packaging type.
Box
Carton
Close
Reference
918FTD
922FTD
928FTD
Drill hole diameter [mm]
8
8
8
Anchorage depth [mm]
35
35
35
Clamping range [mm]
16-19
20-23
25-29
Height [mm]
20
24
29
Width [mm]
20
20
20
Material
Nylon
Nylon
Nylon
Packaging units
50
50
50
Packaging type.
Box
Box
Carton
Applications
  • PVC pipes
  • Plastic pipes
Further specifications

Key features:

  • Halogen-free
  • Self-centering
Base materials
Suitable materials
Concrete
Concrete
Solid brick
Solid brick
Solid sand-lime brick
Solid sand-lime brick
Lightweight solid concrete block
Lightweight solid concrete block
