Quick fix nail BN

The quick fixture of slats
Product image of Quick-fix nail BN
Product overview

The quick-fix nail BN allows the quick and easy through-mounting of wooden slats, brackets, or the like by hammering the quick-fix nail into the predrilled hole- done!

Show more
Download documents
List of references
Filters
Drill hole diameter [mm]
6
8
Close
Drill hole depth [mm]
35
40
50
Close
Anchorage depth [mm]
25
30
40
Close
Plug length [mm]
30
60
80
70
90
110
130
150
Close
Thickness of fixture [mm]
5
30
50
70
90
110
Close
Reference
9B630BN
9B660BN
9B680BN
9B870BN
9B890BN
9B8110BN
9B8130BN
9B8150BN
Diameter [mm]
6
6
6
8
8
8
8
8
Length [mm]
30
60
80
70
90
110
130
150
Drill hole diameter [mm]
6
6
6
8
8
8
8
8
Drill hole depth [mm]
35
40
40
50
50
50
50
50
Anchorage depth [mm]
25
30
30
40
40
40
40
40
Plug length [mm]
30
60
80
70
90
110
130
150
Thickness of fixture [mm]
5
30
50
30
50
70
90
110
Packaging units
100
100
100
50
50
50
50
50
Packaging type.
Box
Box
Box
Box
Box
Box
Box
Box
Applications
  • Frame fixings (also temporary)
  • Metal brackets, rails
  • Climbing scaffold
Base materials
Suitable materials
Concrete
Concrete
Solid brick
Solid brick
Solid sand-lime brick
Solid sand-lime brick
Lightweight solid concrete block
Lightweight solid concrete block
Natural stone
Natural stone
Hollow aerated concrete block
Hollow aerated concrete block
Hollow sand-lime block
Hollow sand-lime block
Hollow brick
Hollow brick

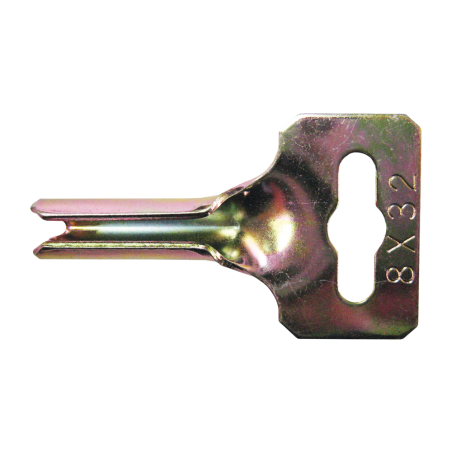

Other related products
How to install
Mounting image BN 1
Mounting image BN 2
Mounting image BN 3
Mounting image BN 4
