Ventilation EPDM rubber lined duct clamp M8 VIEL

Ventilation rubber lined pipe M8
Ventilation clamp - metal clamp - ventilation EPDM clamp
Product overview

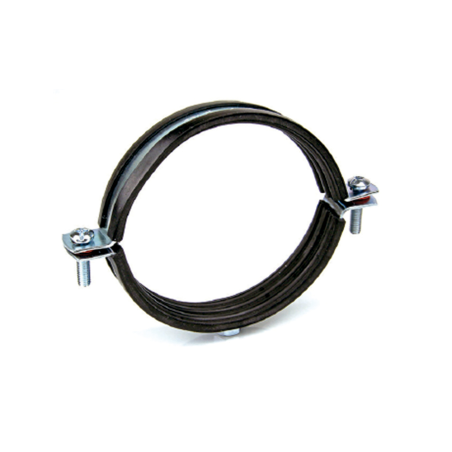

CELO's ventilation EPDM rubber lined duct clamp M8 is made of a rubber that isolates and insulates according to DIN4109. Multifunction screw with hexagonal combination head (slot and crosshead). Certified to resist fire according to standard B2.
Download documents
List of references
Filters
Height [mm]
99.5
125.5
160.5
198.5
258.5
303.5
318.5
358.5
403.5
Close
Thickness [mm]
1.5
2
Close
Width [mm]
20
25
Close
Reference
9100VIEL
9125VIEL
9160VIEL
9200VIEL
9250VIEL
9300VIEL
9315VIEL
9355VIEL
9400VIEL
Height [mm]
99.5
125.5
160.5
198.5
258.5
303.5
318.5
358.5
403.5
Thickness [mm]
1.5
1.5
1.5
1.5
2
2
2
2
2
Width [mm]
20
20
20
20
25
25
25
25
25
Packaging units
50
25
25
25
25
25
25
25
25
Packaging type.
Box
Box
Box
Box
Box
Box
Box
Box
Box
Applications
  • Steel pipes
  • Industrial HVAC
  • Air conditioning pipes
Further specifications

Key features:

  • UV-resistant EPDM sealing
  • Insulated and soundproof EPDM rubber according to the DIN 4109 standard
