Concrete screw BTS6-C1 H with internal thread

Quick mounting of suspensions on concrete ceilings

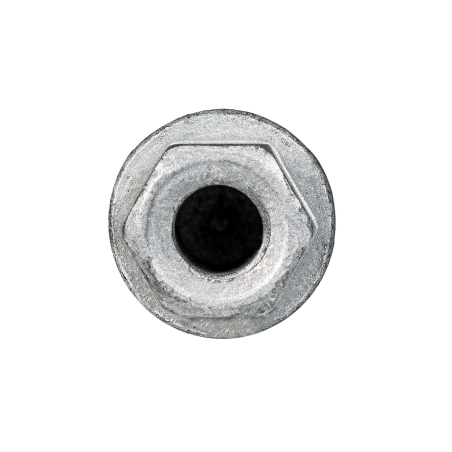

Product image of concrete screw BTS with hex head with internal thread

Product overview

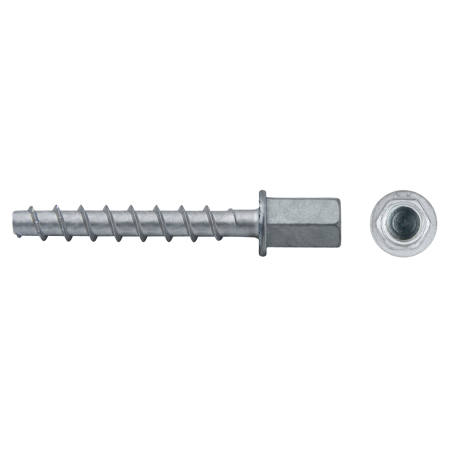

The concrete screw BTS6-C1 H with internal thread is approved in cracked concrete. Head type H is characterised by a high hex-head with integral washer and an internal thread with a length of 15 mm.

It is a very fast solution for fixing fastening rails and more, as the special accessories allow assembling in just two steps: drilling and fixing with the same tool. The special adapter and socket wrench can be easily put over the drill bit and that way, all BTS 6 can be mounted in almost no time.

Short lengths minimise the risk of hitting rebars during installation.

The zinc flake coating ensures a high corrosion resistance (480H SST). The fire resistance class R 120 stands for higher application security for all BTS with an anchorage depth ≥ 50 mm.

Different head shapes (hex head, pan-head) enable various applications. - View all different concrete screws

Download documents

View videos

List of references

Filters

Anchor length [mm]

Head diameter [mm]

Internal thread

Drill hole depth [mm]

Reference

9ZG66538BTSC1HDB

9ZG650M810BTSH

9ZG650M8BTSH

Diameter [mm]

7.5

Length [mm]

Screw diameter [mm]

7.5

Anchor length [mm]

Drill hole diameter [mm]

Head diameter [mm]

Internal thread

3/8" x 15

M8 / M10

Drill hole depth [mm]

55/70

40/55

Packaging units

100

Packaging type.

Box

Applications

Fastening rails
Metal profiles
Handrail
Lampposts
Support profiles

Further specifications

Key features:

ETA approved for non-cracked and cracked concrete (option 1)
Usable under seismic action
Fire resistance certificate R120
Different heads for various applications

Short length reduces risk of hitting rebar
Can be completely removed for temporary fixings
Zinc flake coating (ZnAl) for improved corrosion resistance and higher application security
Compatible with BTS 6 accessories for a faster installation with 1 tool

Base materials
